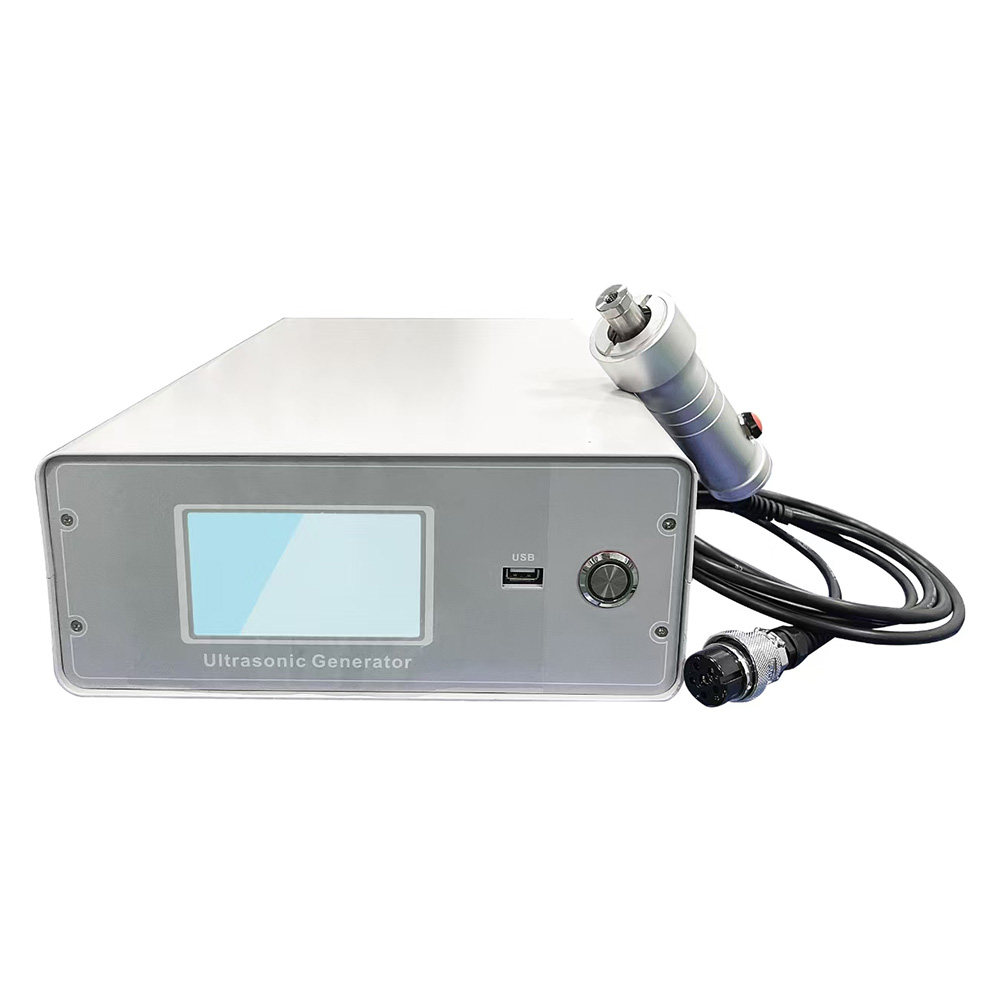

35K Spot Welder

Peculiarity

1, With frequency automatic tracking system

2, Amplitude 10%-100% adjustable

3, The gun handle structure is flexible and practical

4, With overload protection, input voltage protection and safety protection functions

5, With cooling function, to ensure rapid prototyping

6, Support a variety of plastic materials welding

Machine characteristics

1, the real automatic frequency chase (AFC) automatic tracking frequency range :±400HZ(according to 15KHZ ultrasonic as an example, the mold frequency in 14.40-15.20KHZ can be automatically tracked). Frequency tracking accuracy :±5HZ

2, the use of CPU computer to monitor the speed of the program is particularly strong adaptability, built-in various protection systems

3, the automatic mode adjustment function can make the ultrasonic generator automatically track and compensate the change in the frequency of the welding head.

4, built-in automatic constant amplitude system, automatic compensation for different pressure changes and voltage fluctuations, the ultrasonic amplitude can be stepless adjustment from 0% to 100%, to meet the requirements of different welding parts.

5, the use of IGBT power amplification, fast reaction, than the traditional silicon power tube reaction speed of more than 100 times, so the protection function is better.

The system protection monitoring function responds to:

● IGBT overtemperature protection

● The pressure is too high, resulting in overload

● The current of the ultrasonic generator is too large

● Loose welding head, transformer or transducer or other malfunction

● Generator circuit failure

● Cable failure between generator and transducer

● Automatic compensation for power supply frequency instability

Provide installation and commissioning procedures, installation preparation documents, operation and maintenance instructions, and a list of wearing parts

Equipment Parameters:
