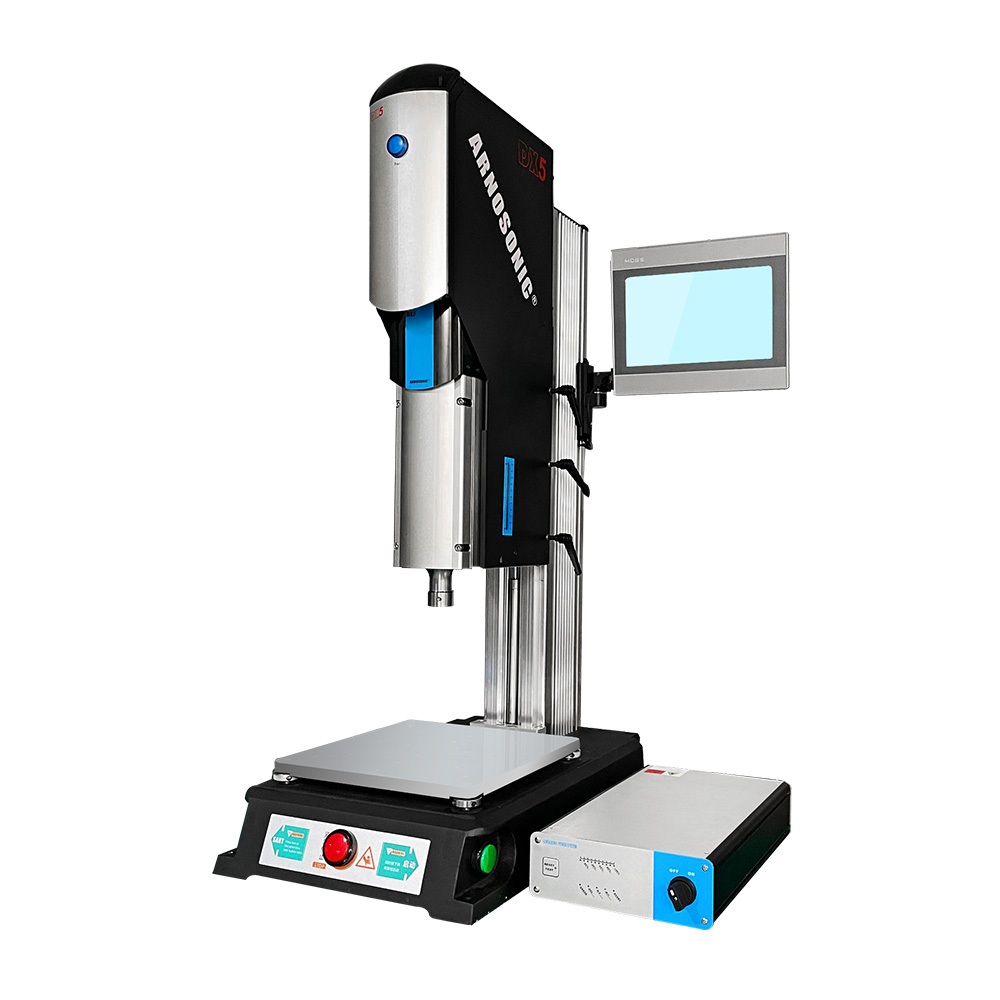

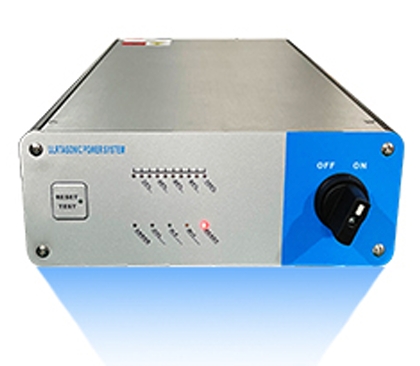

Ultrasonic Servo Welding Machine

5 Advantages

1. Intelligent hierarchical amplitude

2. Digital visual automatic tracking system

3. Quickly replace the upper and lower molds on the horizontal workbench

4. Precision sliding slider and rail, small error5. Servo drive with servo motor, variable speed lifting

6 Major features

1, Trigger mode 4, welding mode 8

2, 5 kinds of quality monitoring to ensure welding quality

3. New Internet of Things control system

4, Can link MES system, upload data

5, Fault self-test, abnormal monitoring

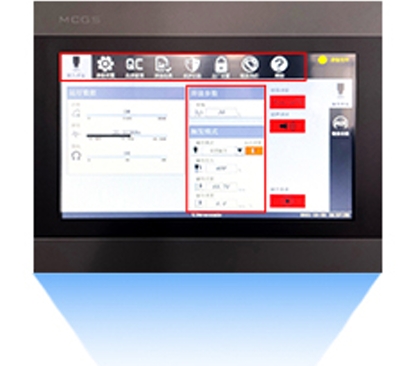

6, Human-machine interaction interface, welding record query/storage/export

Multiple welding modes

High precision acquisition operation, powerful function

Connected to the Internet of Things

Iot control system, cloud data management

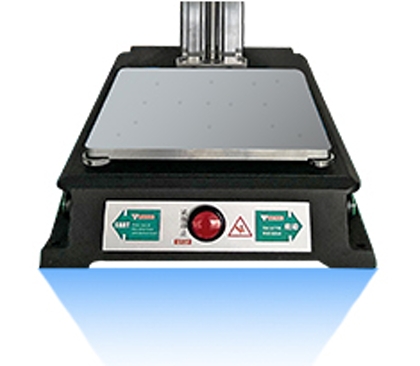

Precision die-cast base

The die-cast base is formed in one piece and the level is adjustable

Machine characteristics

◆ Integration of multiple welding control technologies

◆ The operation mode conforms to the European CE safety specification

◆ Bottom die level adjustment (optional :XY welding platform)

◆ Full closed loop servo stroke control system, precision 0.01mm

◆ Fault self-detection function, can detect the body of the switch function

◆ The column adopts high-strength slide rail connection design,

◆ Ensure welding strength, pressure recovery mechanical high strength and high precision data management: built-in storage/transfer of welding data function

◆ Easy to intelligent data tracking, seamless docking MES system, and PC connection kit

Main function

◆ Language menu: Chinese/English

◆ Amplitude built-in :10%-100% adjustable

◆ Control accuracy :4 sections of actual pressure control (accuracy 1N), time accuracy 0.001 seconds

◆ 5 kinds of intelligent management: amplitude management, quality management, formula management, data management, security management

◆ 4 trigger modes: time trigger, stroke trigger, pressure trigger, external trigger,

◆ 4 kinds of pressure control: trigger pressure control, welding pressure control, cooling pressure control, welding partial pressure control

◆ 4 welding application modes: scanning welding mode, automatic assembly line mode, European safety mode, pulse mode

◆ Intelligent control feedback function: fault self-detection function, real-time automatic frequency tracking function, frequency locking function circuit constant voltage function

◆ Iot functions: Support WIFI/4G wireless network connection, RS232/485 data docking, cloud data management remote assistance printer output

◆ 8 operating modes: manual mode, time mode, energy mode, absolute stroke mode, relative stroke mode, multi-stroke mode, ultrasonic stop mode, Xn mode

Equipment Parameter
