Model Characteristics:
Automatic adjustment, can be connected to MES system
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Comes with quality monitoring software
Model Characteristics
Automatic adjustment, can be connected to MES system
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Comes with quality monitoring software
Scope Of Application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc

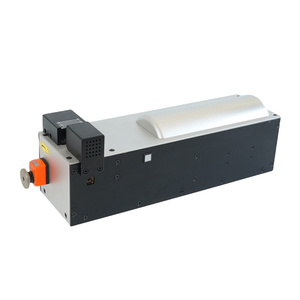

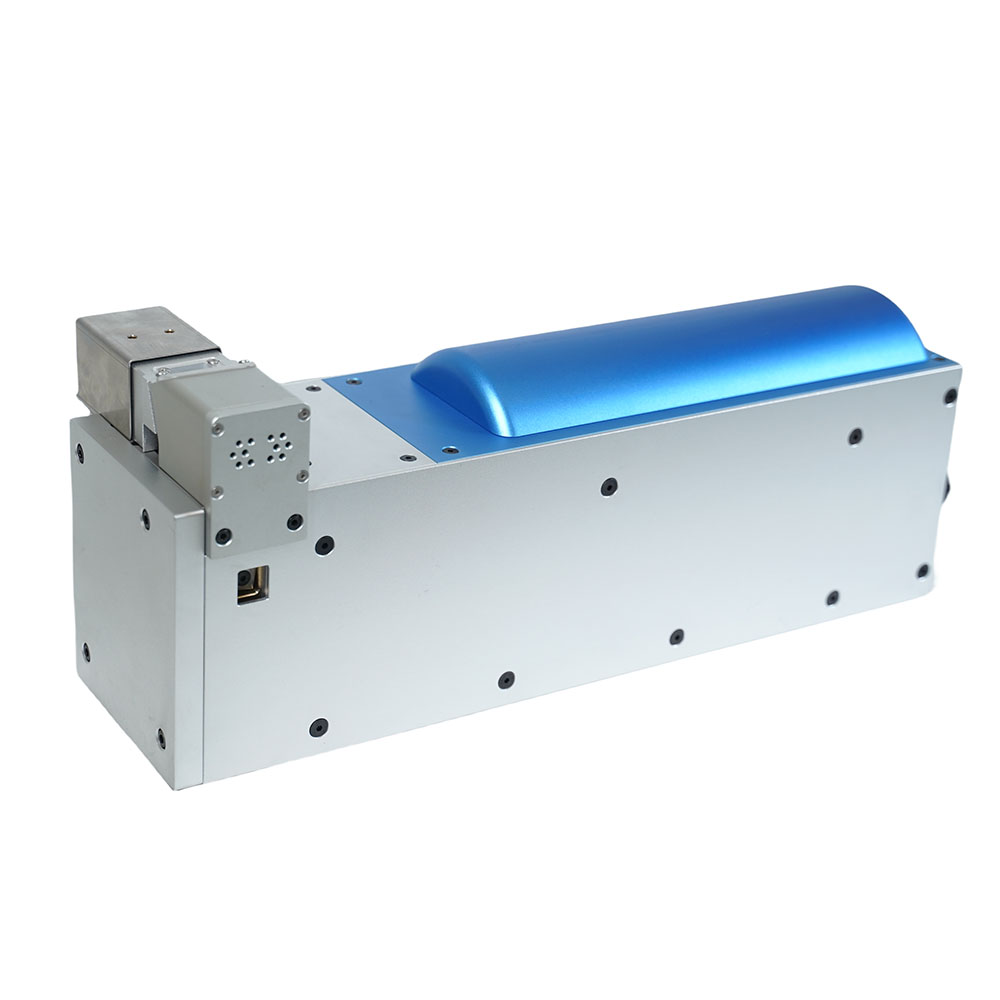

Frame Selection
Wy-20XS030H 25mm2 rack
Wy-20XS060H 50mm2 rack
Technical Parameter
| Frame Type | Wy-20XS030H | Frame Type | Wy-20XS060H |
| Maximum Power | 3.0KW | Maximum Power | 6.0KW |
| Operating Frequency | 20KHz | Operating Frequency | 20KHz |
| Power Input | 220AC /50Hz | Power Input | 380AC /50Hz |
| Air Source Input | min0.65MPa | Air Source Input | min0.65MPa |
| Weldability | 0.5~25mm2 | Weldability | 0.5~25mm2 |
| Frame Weight | 20Kg | Frame Weight | |
| Frame Size | 483x195x165mm | Frame Size |
Model Characteristics
Automatic adjustment, can be connected to MES system
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Comes with quality monitoring software
Scope Of Application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc
Frame Selection
Wy-20XS030H 25mm2 rack
Wy-20XS060H 50mm2 rack
Technical Parameter
| Frame Type | Wy-20XS030H | Frame Type | Wy-20XS060H |
| Maximum Power | 3.0KW | Maximum Power | 6.0KW |
| Operating Frequency | 20KHz | Operating Frequency | 20KHz |
| Power Input | 220AC /50Hz | Power Input | 380AC /50Hz |
| Air Source Input | min0.65MPa | Air Source Input | min0.65MPa |
| Weldability | 0.5~25mm2 | Weldability | 0.5~25mm2 |
| Frame Weight | 20Kg | Frame Weight | |
| Frame Size | 483x195x165mm | Frame Size |
