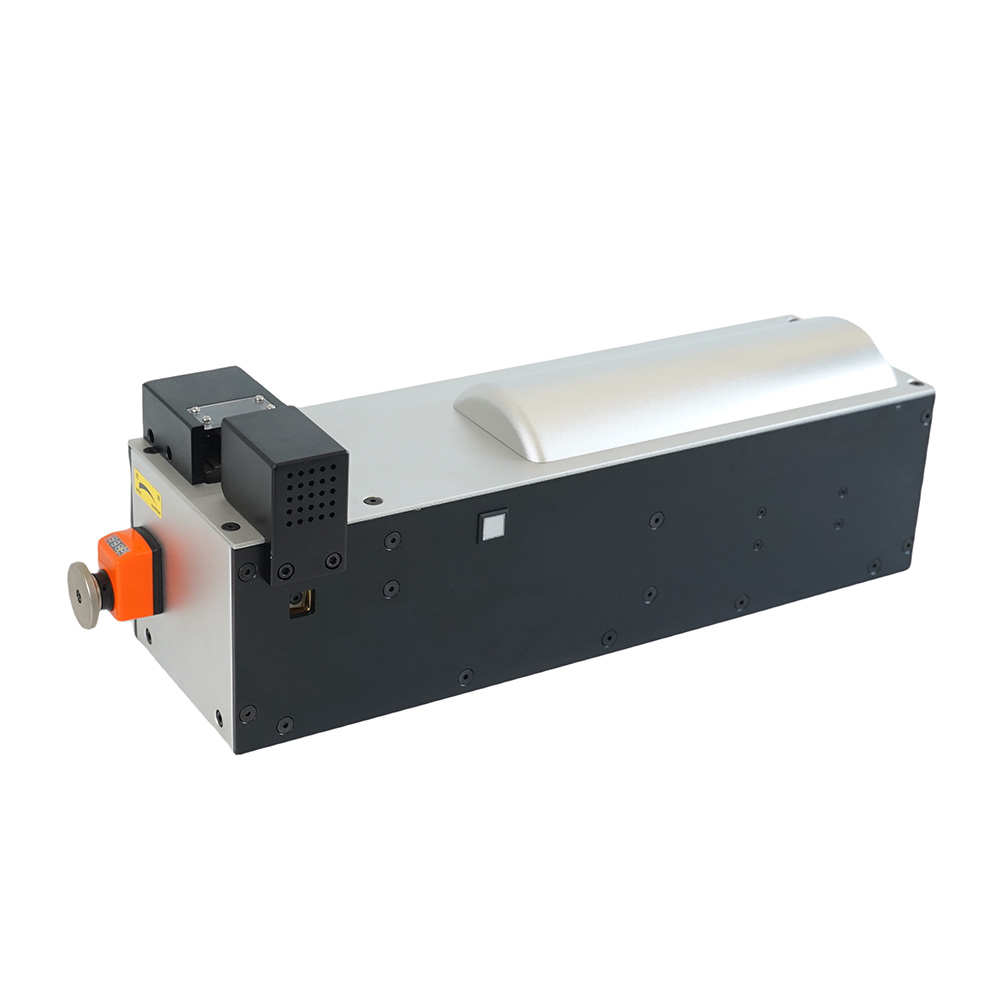

Model Characteristics
Manual adjustment for a single product
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Model Characteristics
Manual adjustment for a single product
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Scope Of Application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc
Frame Selection
Wy-20XS030L 25mm2 rack
Wy-20XS060L 50mm2 rack
Technical Parameter
| Frame Type | Wy-20XS030L | Frame Type | Wy-20XS060L |
| Maximum Power | 3.0KW | Maximum Power | 6.0KW |
| Operating Frequency | 20KHz | Operating Frequency | 20KHz |
| Power Input | 220AC /50Hz | Power Input | 380AC /50Hz |
| Air Source Input | min0.65MPa | Air Source Input | min0.65MPa |
| Weldability | 0.5~25mm2 | Weldability | 0.5~25mm2 |
| Frame Weight | 20Kg | Frame Weight | |
| Frame Size | 535x168x178mm | Frame Size |
Model Characteristics
Manual adjustment for a single product
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Scope Of Application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc
Frame Selection
Wy-20XS030L 25mm2 rack
Wy-20XS060L 50mm2 rack
Technical Parameter
| Frame Type | Wy-20XS030L | Frame Type | Wy-20XS060L |
| Maximum Power | 3.0KW | Maximum Power | 6.0KW |
| Operating Frequency | 20KHz | Operating Frequency | 20KHz |
| Power Input | 220AC /50Hz | Power Input | 380AC /50Hz |
| Air Source Input | min0.65MPa | Air Source Input | min0.65MPa |
| Weldability | 0.5~25mm2 | Weldability | 0.5~25mm2 |
| Frame Weight | 20Kg | Frame Weight | |
| Frame Size | 535x168x178mm | Frame Size |
